Motor tubes

T5-EMT
(image for) Motor Tube - BT-5 - Model Rocket Part

Motor Tube - BT-5 - Model Rocket Part

This is a plain kraft body tube which is the proper size to use as a 13mm motor mount. The tube is 1.75" long and matches a standard BT-5 tube in...
Model: T5-EMT
30 Units in Stock
$0.45

In Stock: 30
T50HE-MT
(image for) Motor Tube - BT-50 - 3.75" Long (E Size) - Model Rocket Part

Motor Tube - BT-50 - 3.75" Long (E Size) - Model Rocket Part

This is a cardboard tube used as a motor mount for 24mm diameter model rocket motors. It is 3.75" long, the same length as an Estes E9 or E12 engine.
Model: T50HE-MT
2 Units in Stock
$0.70

In Stock: 2
T50XL-MT
(image for) Motor Tube - BT-50 - 5.25" Long (XL Size) - Model Rocket Part

Motor Tube - BT-50 - 5.25" Long (XL Size) - Model Rocket Part

This is a cardboard tube used as a motor mount for 24mm diameter model rocket motors. It is 5.25" long.
Model: T50XL-MT
30 Units in Stock
$0.99

In Stock: 30
T20-EMT

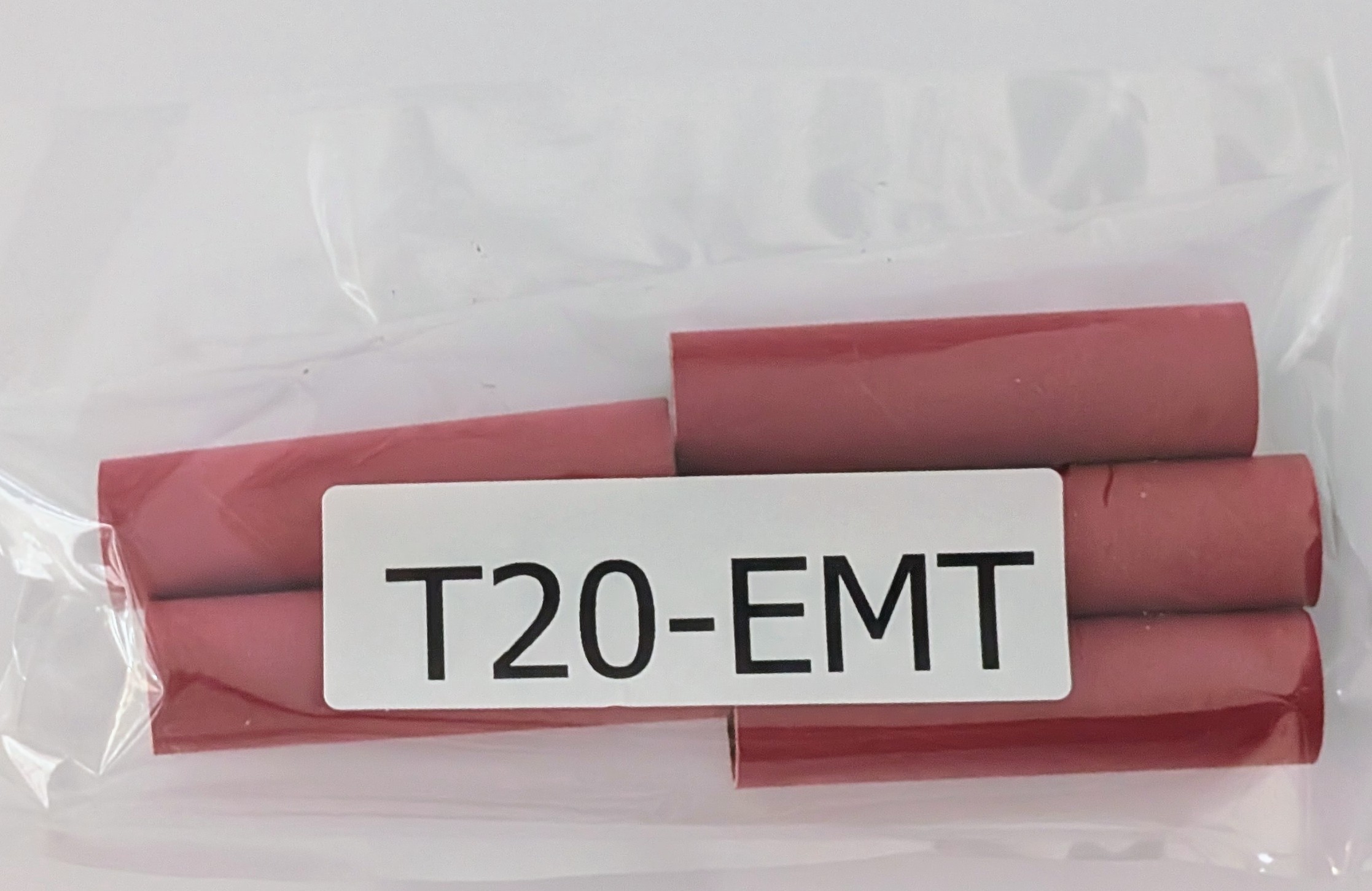

(image for) Motor Tube - BT-20 (Package of 5) - Model Rocket Part

Motor Tube - BT-20 (Package of 5) - Model Rocket Part

This package of five 2.75" long tubes sized to hold a standard 18mm motor. Inside Diameter: .710 inches Outside Diameter: .740 inches Red outer wrap...
Model: T20-EMT
0 Units in Stock
$1.99
... more info
 Sold Out
In Stock: 0
T50-EMT
(image for) Motor Tube - BT-50 - 2.75" Long - Model Rocket Part

Motor Tube - BT-50 - 2.75" Long - Model Rocket Part

 This 2.75" long motor tube is the right diameter for creating motor mounts for 24-mm diameter C11 and D12 engines.
Model: T50-EMT
0 Units in Stock
$0.60
... more info
 Sold Out
In Stock: 0

Body Tube Specifications

Name ID (in) ID (mm) OD (in) OD (mm) Wall (in) Wall (mm)
MicroMaxx 0.254 6.45 0.282 7.16 0.014 0.36
BT-5 0.5180 13.1572 0.5440 13.8176 0.0260 0.6604
BT-20 0.7100 18.0340 0.7360 18.6944 0.0260 0.6604
BT-20H 0.7100 18.0340 0.7520 19.1008 0.0420 1.0668
BT-50 0.9500 24.1300 0.9760 24.7904 0.0260 0.6604
BT-50H 0.9500 24.1300 0.9800 24.8920 0.0300 0.7620
TT-50 0.9880 25.0952 1.0280 26.1112 0.0400 1.0160
BT-29 (29mm) 1.1400 28.9560 1.2100 30.7340 0.0700 1.7780
BT-55 1.2830 32.5882 1.3250 33.6550 0.0420 1.0668
TT-55 1.3400 34.0360 1.3850 35.1790 0.0450 1.1430
BT-60 1.5950 40.5130 1.6370 41.5798 0.0420 1.0668
BT-1.9 1.8000 45.7200 1.8900 48.0060 0.0900 2.2860
PS II 2-inch 1.9200 48.7680 2.0000 50.8000 0.0800 2.0320
BT-70 2.1750 55.2450 2.2170 56.3118 0.0420 1.0668
BT-70H 2.1660 55.0164 2.2180 56.3372 0.0520 1.3208
PS II 2.5-inch 2.4200 61.4680 2.5000 63.5000 0.0800 2.0320
BT-80 2.5600 65.0240 2.6000 66.0400 0.0400 1.0160
BT-80H 2.5600 65.0240 2.6110 66.3194 0.0510 1.2954
BT-2.6 2.5500 64.7700 2.6400 67.0600 0.0900 2.2900
PS II 3-inch 2.9200 74.1680 3.0000 76.2000 0.0800 2.0320
BT-101 3.8960 98.9584 3.9380 100.0252 0.0420 1.0668
PS II 4-inch 3.9200 99.5680 4.0000 101.6000 0.0800 2.0320

Most body tubes are made from spiral-wound kraft paper. White kraft body tubes are made from paper that has been bleached white. Brown or gray (the color may vary) tubes are made from unbleached kraft paper.

Standard body tube sizes are based on the inner diameter (ID) of the tube. The outer diameter (OD) and the wall thickness (Wall) depend on how many layers of paper are wound around the tube. "Heavy" body tubes have one or more extra layers of paper resulting in a thicker wall.
